Our wireless temperature monitoring system provides a flexible and reliable solution for various applications, especially in power and industrial sectors. The system can be paired with a range of smart temperature sensors to meet diverse monitoring needs.
System Features
Our system integrates online temperature monitoring, data collection, and data analysis into a single solution. It is designed for seamless integration and flexible deployment.
- Flexible Wireless Transmission: Our sensors support a variety of wireless communication frequencies including 433MHz, 470MHz, 2.4G, and 915MHz, offering stable data transmission to the host or smart gateway.
- Passive & Active Sensor Options: Depending on the application, some of our smart temperature sensors can operate without an external power supply, drawing energy from the monitored object itself (current or electromagnetic induction). They can also be powered by an external source if needed.
- Wide Temperature Range & High Precision: Our sensors offer a broad temperature measurement range from -40°C to +160°C, with a high accuracy of ±1°C. Some specialized sensors can withstand extreme temperatures exceeding 220°C.
- Comprehensive Monitoring Solution: The system consists of a backend software, a monitoring host, and smart sensors, providing an all-in-one solution for temperature monitoring, early warning, and data visualization. We also support customized solutions, from local monitoring to cloud-based platforms.
- Easy Integration: The system offers various communication interfaces, including RS485, 4G, and Lora, making it easy to integrate with third-party systems and network setups.
Main Wireless Temperature Sensors
We offer a range of sensors tailored for different installation methods and application environments.

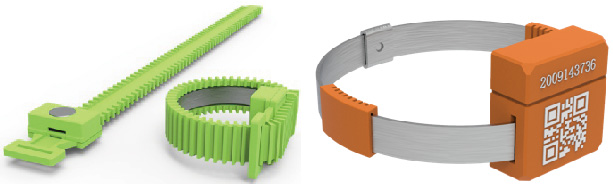

Strap-On Passive/Active Wireless Temperature Sensor
- This versatile sensor is designed for easy installation and a wide range of uses.
- Temperature Range: -25℃ to +125℃
- Wireless Frequency: 433MHz, 2.4G
- Transmission Distance: ≤150m (in open areas)
- Power Supply: Active/Passive (current induction)
- Installation: Strap-on

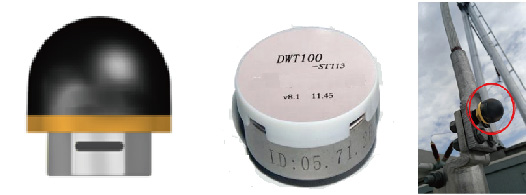

Lug-Type Passive/Active Wireless Temperature Sensor
Perfect for monitoring electrical connections like cable terminals and busbars.
- Temperature Range: -25℃ to +125℃
- Wireless Frequency: 433MHz, 2.4G
- Transmission Distance: ≤150m (in open areas)
- Power Supply: Active/Passive (electric field induction)
- Installation: Lug-type (fastened by nut)

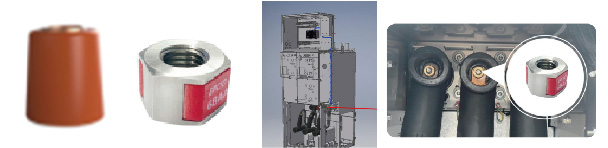

Passive Wireless Temperature Sensor
Utilizing RFID technology, this sensor is ideal for applications where power access is difficult.
- Temperature Range: -40℃ to +150℃
- Wireless Frequency: RFID UHF (840-960MHz)
- Transmission Distance: ≤3m
- Power Supply: Passive (powered by electromagnetic waves from the reader’s antenna)
- Installation: Nut-fixed

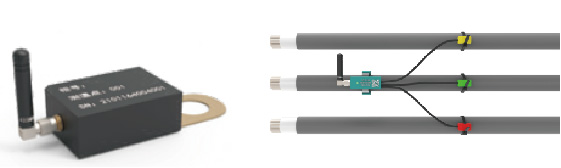

Low-Voltage Active/Passive Wireless Temperature Sensor
Specifically designed for low-voltage environments, this sensor ensures safe and reliable monitoring.
- Temperature Range: -25℃ to +125℃
- Wireless Frequency: 433MHz
- Transmission Distance: ≤150m
- Power Supply: Active/Passive (current induction)
- Application: Low-voltage switchgear
